LED超薄面板灯 压铸筒灯 方形 圆形 LED平板灯3W-25W

LED超薄面板灯 3w/4w/6w/9w/12w/15w/18w/25w

Days
Hours
Mins
Secs
1

¥ 1.00 ¥ 1.00 1.0 CNY

¥ 1.00

  • Size-Wattage
  • Shape/Style
  • Emitting Color

此组合不存在。

添加到购物车 Buy Now

30 天内可退款保证


30 天内可退款保证


undefined

undefined
undefined

Odoo • 图像和文字

产品参数

型号MN-MZTO01
品名LED 面板灯(方)
功率3w-25w
光源2835芯片
颜色象牙白
商品材质铝材+亚克力导光板
电压85-265v
适用场所家装/商业/办公照明
Odoo • 图像和文字

产品参数

型号MN-MZTO02
品名LED 面板灯(圆)
功率3w-25w
光源2835芯片
颜色象牙白
商品材质铝材+亚克力导光板
电压85-265v
适用场所家装/商业/办公照明


额定功率面板灯尺寸(mm)开孔尺寸(mm)适用面积参考值(㎡)
3w90mm75mm2 ㎡
4w110mm95mm3 ㎡
6w120mm105mm4 ㎡
9w145mm125mm6 ㎡
12w
170mm155mm8 ㎡
15w195mm180mm10 ㎡
18w225mm205mm12 ㎡
25w300mm285mm14 ㎡

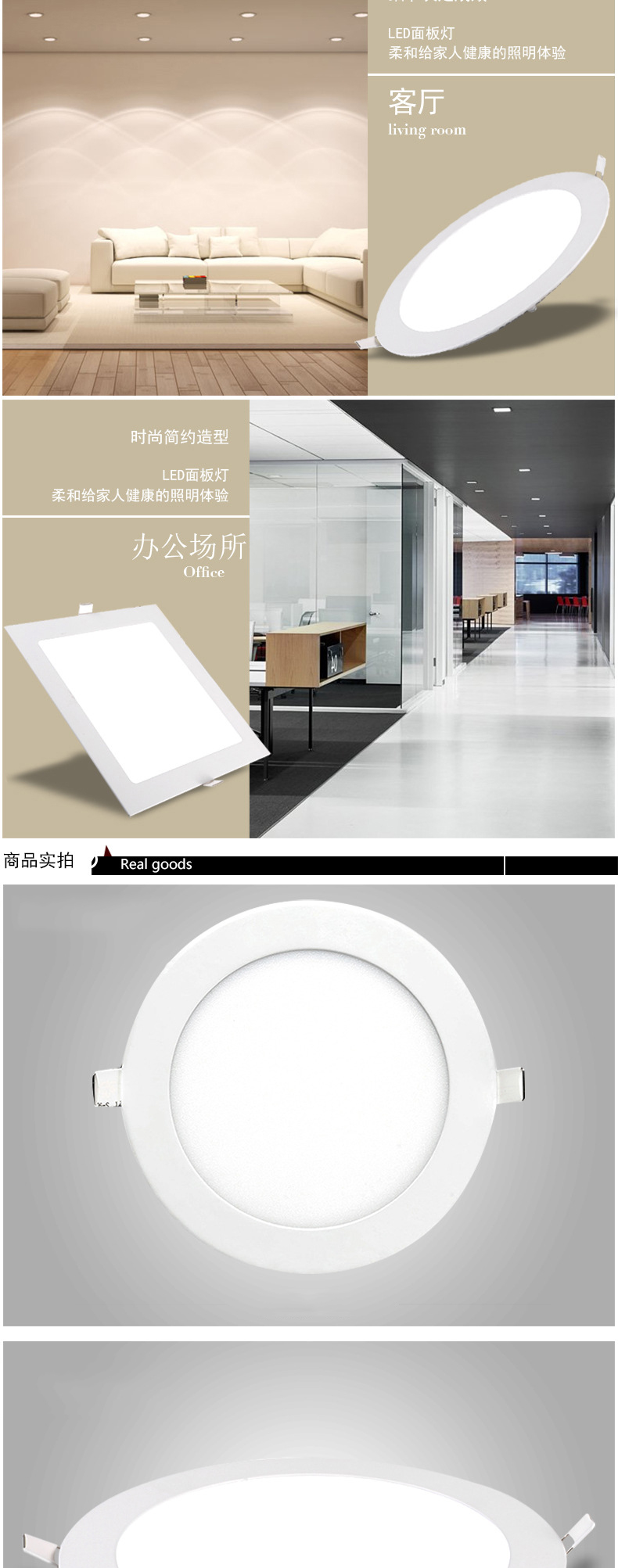

情景展示
